WIND RATED ECO LIFT 2.2M
SKU: ECOW

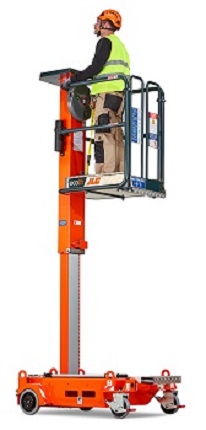

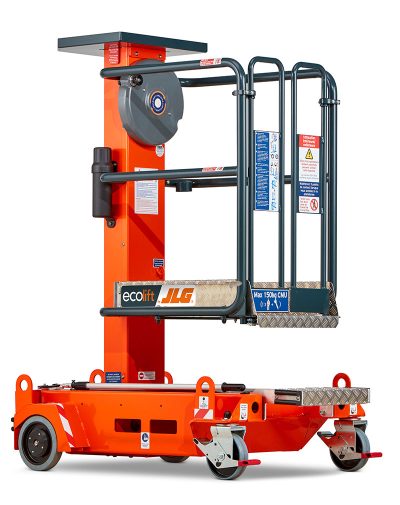

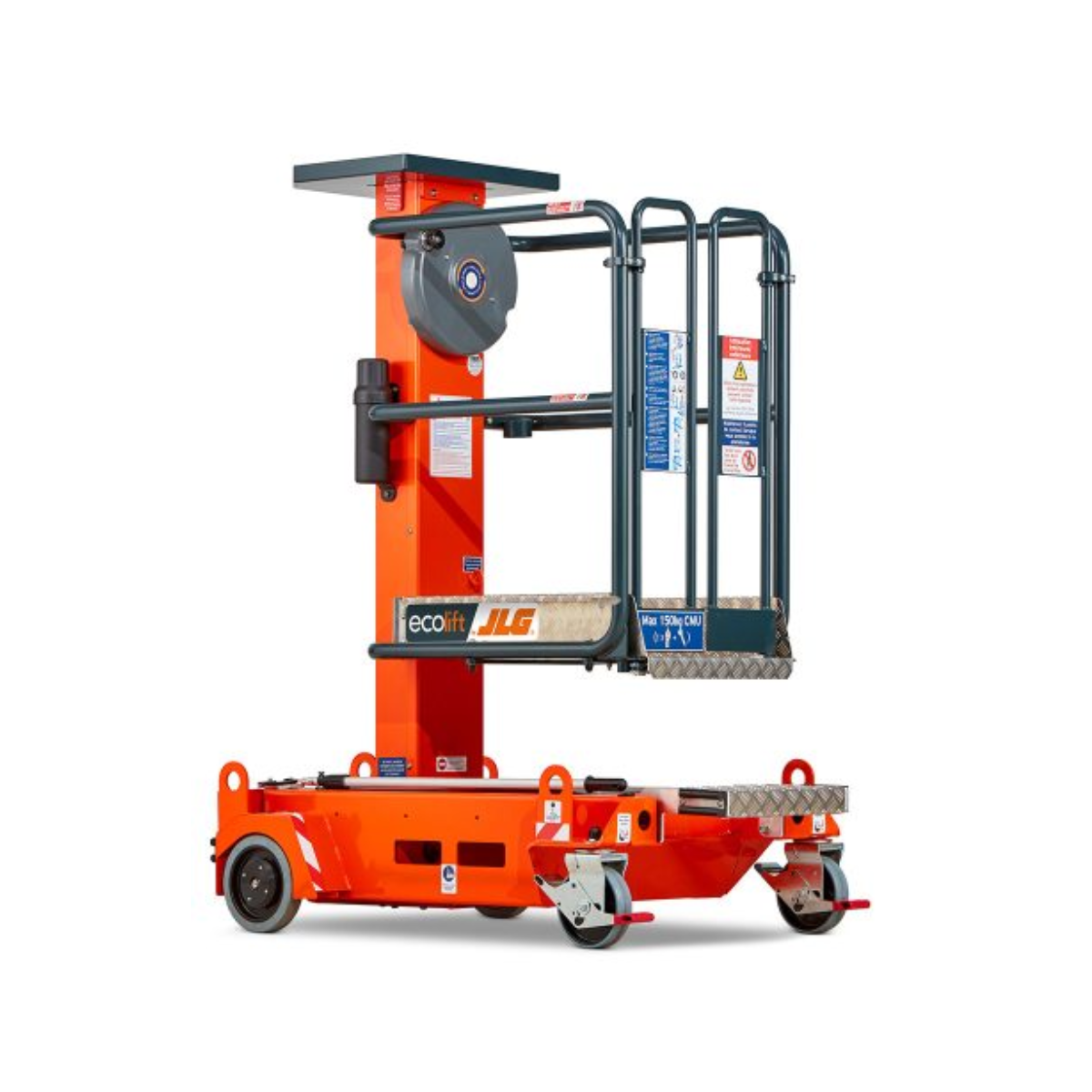

The JLG Wind Rated EcoLift is a non-powered access platform designed specifically for outdoor use, providing a sustainable and reliable solution for working at height. Wind rated up to 12.5 m/s, it uses JLG’s patented stored power system, with no batteries or hydraulic oil required. Lightweight and easy to manoeuvre, it offers unlimited lift cycles and can be used 24/7, making it ideal for applications such as formwork, rebar installation and waterproofing foundation walls.
Create an account
Login or create an account to gain access to product prices and document library.
Create hire accountor sign in here
Features:
-
Intuitive to operate – turn handle to elevate
-
Patented* lift mechanism, no power required
-
Lightweight, easy to manoeuvre
-
Small foot print (1.28 m x 0.95 m)
-
Unlimited lift cycles, can be used 24/7
-
Robust design for years of trouble free service
-
Minimal operational costs, virtually maintenance free
Specifications:
| Power Type | Manual |
|---|---|
| Extended Max Height | 7.22ft |
| Working Height | 13.78ft |
| Platform Length | 2.79ft |
| Platform Length Extended | 2.79ft |
| Platform Width | 2.11ft |
| Machine Length | 4.2ft |
| Machine Width | 3.12ft |
| Stowed Height | 6.36ft |
| Stowed Height Rails Down | 6.36ft |
| Max Load Capacity | 150kg |
| Weight | 335kg |
| Gradeability | 3% |
| Environment | Indoor |
| Surface Indoor | Finished |
| Surface Outdoor | Even |
| Tyres | Non Marking |
| Maximum Ground Bearing Pressure | 245kg |
