VIEGA PRESS IN CONNECTOR TOOL KIT
SKU: VKCON

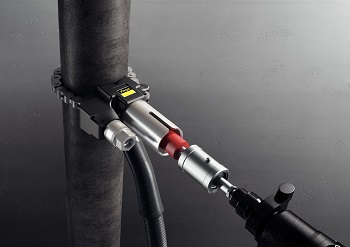

The Megapress press-in branch connector is suitable for thick-walled steel pipes. The press-in branch connector generates a threaded connection in pipelines. It is particularly suitable for confined spaces, e.g. manifold installations for sensors, thermometers, or drains. The press-in branch connector is not suitable for use in drinking water installations. For this reason, press-in branch connectors are labelled with a black symbol “Not drinking water”. It is not permitted to use the press-in branch connector for fuel gases pursuant to DVGW Worksheet G 260 or in connection with Prestabo system components.
Create an account
Login or create an account to gain access to product prices and document library.
Create hire accountor sign in here
Additional Information
Specifications:
For mounting the press-in branch connector, you need the following machines:
• Power drill / hammer drill
• Press machine
• Suction device, e.g. vacuum cleaner
• Marking pen
• Ring or fork spanner, 27 mm
• Ring or fork spanner, 32 mm
• Screwdriver
• Wire brush
• Sanding paper (grade 180)
• If applicable, pipe pliers
The drills must meet the following minimum specifications:
1. Rated input: ≥ 600 Watt
2. Drilling speed max.: 1200 U/min
3. Chuck: SDS-plus or hexagonal drive adapter
4. Impact function: Disabling the impact function must be possible
5. Friction clutch: The machine must have a friction clutch
