PETROL MOSA DC 200AMP

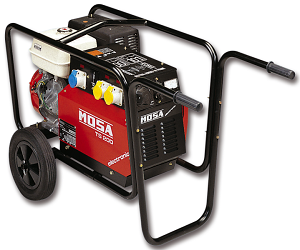

The Mosa TS 200 BS/EL petrol welder generator with AC output offers 170 amp output @ 60% duty cycle and is suitable for welding electrodes up to 3.25mm.
| Weekly hire rate | £94.50 ex. VAT |
|---|---|
| Availability | In Stock |
Create an account
Login or create an account to gain access to product prices and document library.
Create hire accountor sign in here
Additional Information
Features:
- 190 amp - DC welding output
- Step-less electronic welding control
- AC generator output - 4kVA 110/230V
- 12V battery boost facility
- Wraparound protective frame
- Portable welder
- EEC noise compliant
Specification:
- Current Range (Continuous) 20 - 190A
- Open Circuit Voltage 65V
- Duty Cycle (Intermittent) 190A @ 60% 140A @ 100%
- Electrode Diameters 2 - 4 mm
- AC Generation - Single Phase 4 kVA 230V @ 100% Duty Cycle
- AC Generation - Single Phase C.T.E. 2 x 2 kVA 110V @ 100% Duty Cycle
- Engine Type Honda GX 390 Petrol, 4 Stroke
- Engine Output 8.4 kW (11.4 HP)
- Engine Speed 3000 rpm
- Displacement Cylinders 389 cm3/1
- Fuel Consumption 2.1 l/hr
- Fuel Tank Capacity 6.5 Litres
- Running Time @ 60% Load 3.5 Hours
- Protection IP 23
- Noise Level 98 LWA 73 dB(A)
- Weight Kg 105
- Dimensions (mm) 870 x 525 x 592
,
