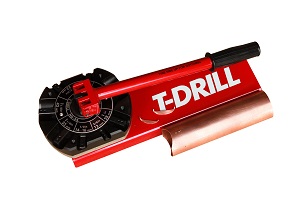

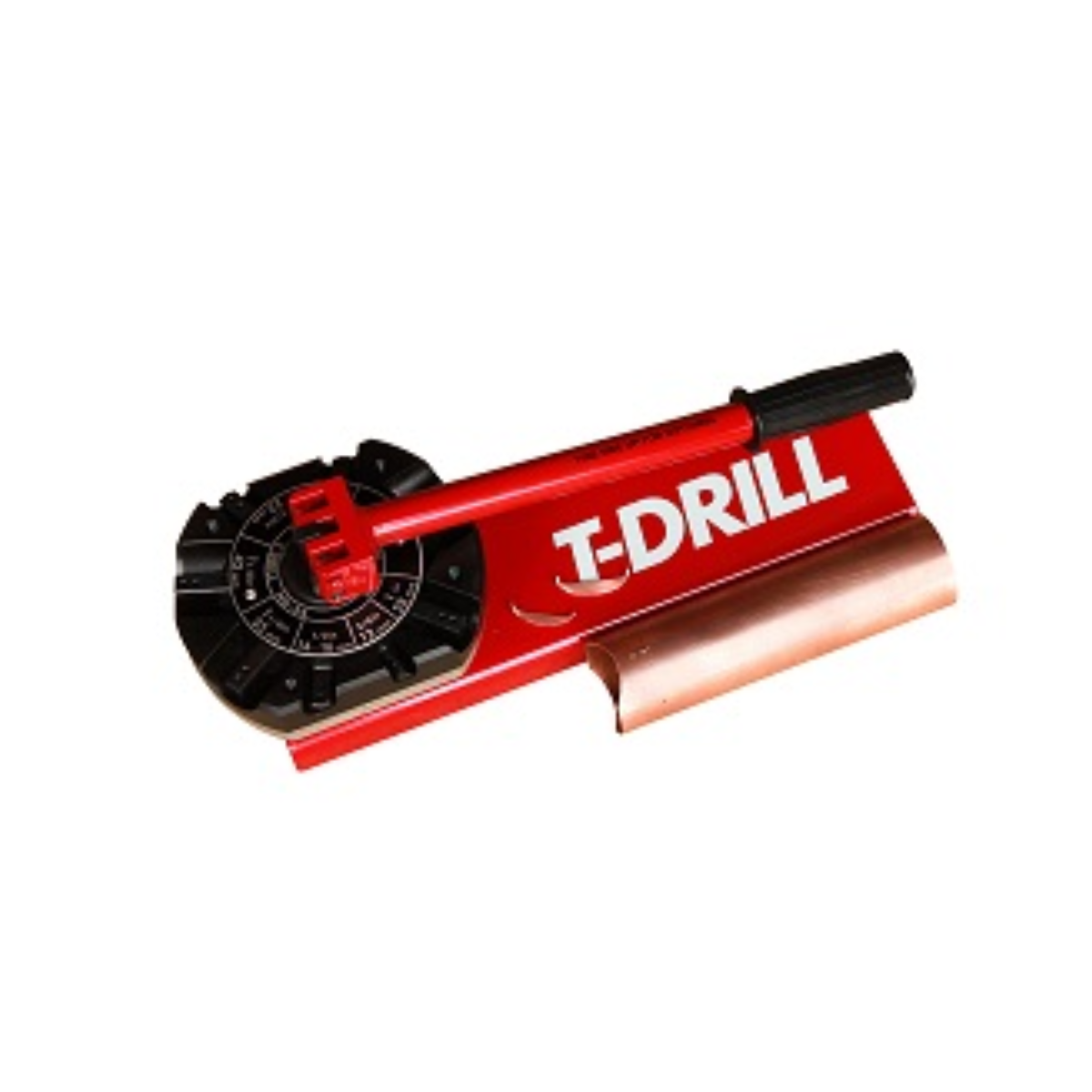

ND-54 TUBE END NOTCHER (ACCESSORY TO DRILL)
ND-54 Tube End Notcher is used for cutting and dimpling the branched tube ends to enable the best possible flow characteristics.
This is an accessory to the T60 T-Drill.
| Weekly hire rate | £42.00 ex. VAT |
|---|---|
| Availability | In Stock |
Create an account
Login or create an account to gain access to product prices and document library.
Create hire accountor sign in here
Additional Information
The ND-54 is a natural complement to the T-DRILL tee forming system. It cuts a half-moon shaped coupon from each side of the branch tube to provide for full flow and simultaneously presses in a dimple that rests on the rim of the tee and acts as a depth stop. A second dimple 6 mm higher acts as a point of inspection. The result is an inspectable brazed joint with the best possible flow characteristics.
For branch tube sizes 12, 14-16, 18, 22, 28, 35, 42 and 54 mm and for corresponding inch sizes:½”, ¾”, 1”, 1 ¼”, 1 ½”, 2”.
To be used with the T60 110v T Drill 15 - 54mm
