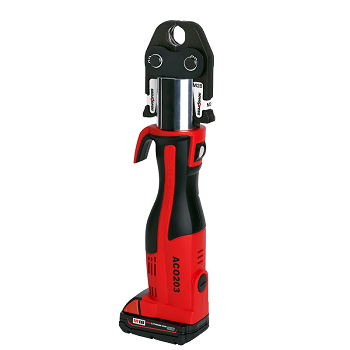

M - Press Kit 2 15 - 35mm

Features:

• • Suitable for use on M Press copper, carbon and stainless press fittings
  • Low weight
  • Illumination of the press area
  • No limitation of the pressing cycles within the 2-year maintenance interval
  • Faster pressing cycles thanks to the Brushless Motor Technology
  • up to 40 % more pressings per battery charge
  • Analysis of the pressing tool performance via NovoCheck app

Specifications:

• • • Weight incl. battery: 2.8 kg
    • Length: 387 mm
    • Width: 75 mm
    • Height: 111 mm
    • Power consumption: 450 W
    • Piston force: 32 kN
    • Piston stroke: 40 mm
    • Battery: 18 V Li-Ion / 3.0 Ah
    • Battery capacity: up to 160 press cycles per battery
    • Charging time: approx. 30 – 60 min.

• • • 1 x ACO203 Tool
    • 2 x 3.0 Ah batteries
    • 1 x 240v Charger
    • 15 - 35mm M profile jaws
    • Carry case

Please Note:

All our Novopress tools are calibrated using an 8790 pressure tester and our jaws are inspected with an 31465 optical laser test rig in accordance with the manufacturers instructions.
