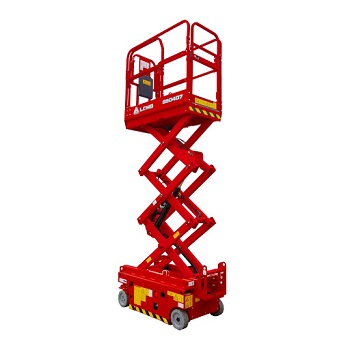

LGMG1330 Scissor Lift
SKU: LGMG1330
The LGMG SS Series scissor lifts offer an ideal solution for the low-level access and tight restricted application job sites. Shorter overall machine length and lighter weight makes it suitable for most elevators. Platform Capacity 240kg(530lbs) Max. Working Height 5.6m(18.4ft)
Create an account
Login or create an account to gain access to product prices and document library.
Create hire accountor sign in here
Features:
- Battery powered, zero emission and quiet drive mean this machine is environmentally friendly.
- Efficient electric drive system provides longer-lasting performance and better gradeability.
- The zero turning radius and the light weight make this machine ideal for space restricted conditions, providing exceptional manoeuvrability.
- Exceptional waterproofed drive system design provides excellent performance in wet conditions.
- Commonality of control system with other electric scissor lifts.
Specifications:
| Model | SS0407E |
| Measurements | |
| Work Height Max. m/ft | 5.6 |
| A-Platform Height-Raised m/ft | 3.6 |
| B-Platform Height-Stowed m/ft | 0.95 |
| C-Platform Length m/ft | 1.35 |
| D-Platform Width m/ft | 0.7 |
| E-Overall Length m/ft | 1.53 |
| F-Overall Width m/ft | 0.76 |
| G-Overall Height-Guardrails Up m/ft | 2.06 |
| Overall Height-Guardrails Down m/ft | 1.82 |
| H-Extension Deck m/ft | 0.6 |
| I-Wheelbase m/in | 1.12 |
| Ground Clearance(Stowed/Raised) mm/in | 50/16 |
| Productivity | |
| Max. Platform Occupants (In / out) | 2/1 |
| Platform Capacity kg/lbs | 240 |
| Platform Capacity-Extension Deck kg/lbs | 113 |
| Drive Height | Full Height |
| Gradeability-Stowed % | 25 |
| Turning Radius-Inside | 0 |
| Turning Radius-Outside m/ft | 1.5 |
| Raise/Lower Speed s | 25/20 |
| Brakes | Front-wheel Brake |
| Drive Mode | 4×2 |
| Tires Type | Solid Non-marking |
| Tires Size mm/in | 230×80 |
| Power | |
| Power Source | 24V DC 115Ah |
| Hydraulic System | |
| Hydraulic Oil Capacity L/gal | 4.5 |
| Weight | |
| Machine Weight(CE) kg/lbs | 880 |
