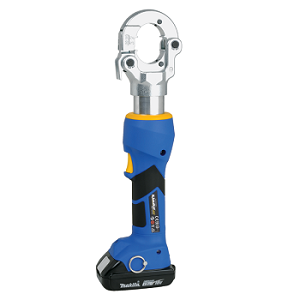

Klauke EKM60/22 Battery Crimping tool

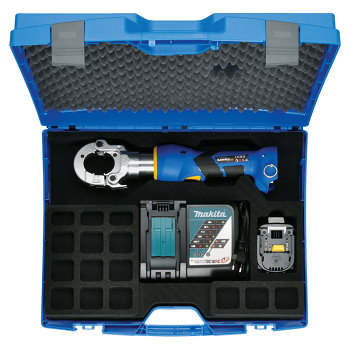

The Klauke EKM 60/22 battery crimping tool is supplied with HEX die set for standard copper crimping from 6-300 mm².
| Weekly hire rate | £121.00 ex. VAT |
|---|---|
| Availability | In Stock |
Create an account
Login or create an account to gain access to product prices and document library.
Create hire accountor sign in here
Features:
- All data can be easily read via Bluetooth
- Closed head with bolt interlock, rotatable, flip top style
- Quality assurance via visual and audible signals in case of error
- Simple and safe: One-button operating concept for controlling all tool functions
- Effortless working due to balanced centre of gravity
- LED for work area illumination
- Simple and safe: Automatic retraction when operation is complete
- Automatic retract stop (ARS) for positioning control in case of multiple crimps
- Always ready-to-use thanks to battery charge and service display
Specifications:
Makita Battery System
| Crimping force | 60 kN |
| Stroke | 17.5 mm |
| Crimping range | 6 - 300 mm² |
| Crimping cycle | 2 s (for ARS) to 5 s (depending on crimp cross-section) |
| Number of crimps | approx. 150 - 200 at 150 mm² Cu DIN |
| Battery voltage | 18 V |
| Battery capacity | 1.5 Ah, Li-Ion |
| Battery charging time | 15 min. |
| Weight including battery | 3.0 kg |
| Ambient temperature | -10 °C to +40 °C |
