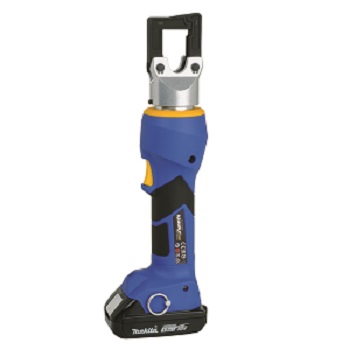

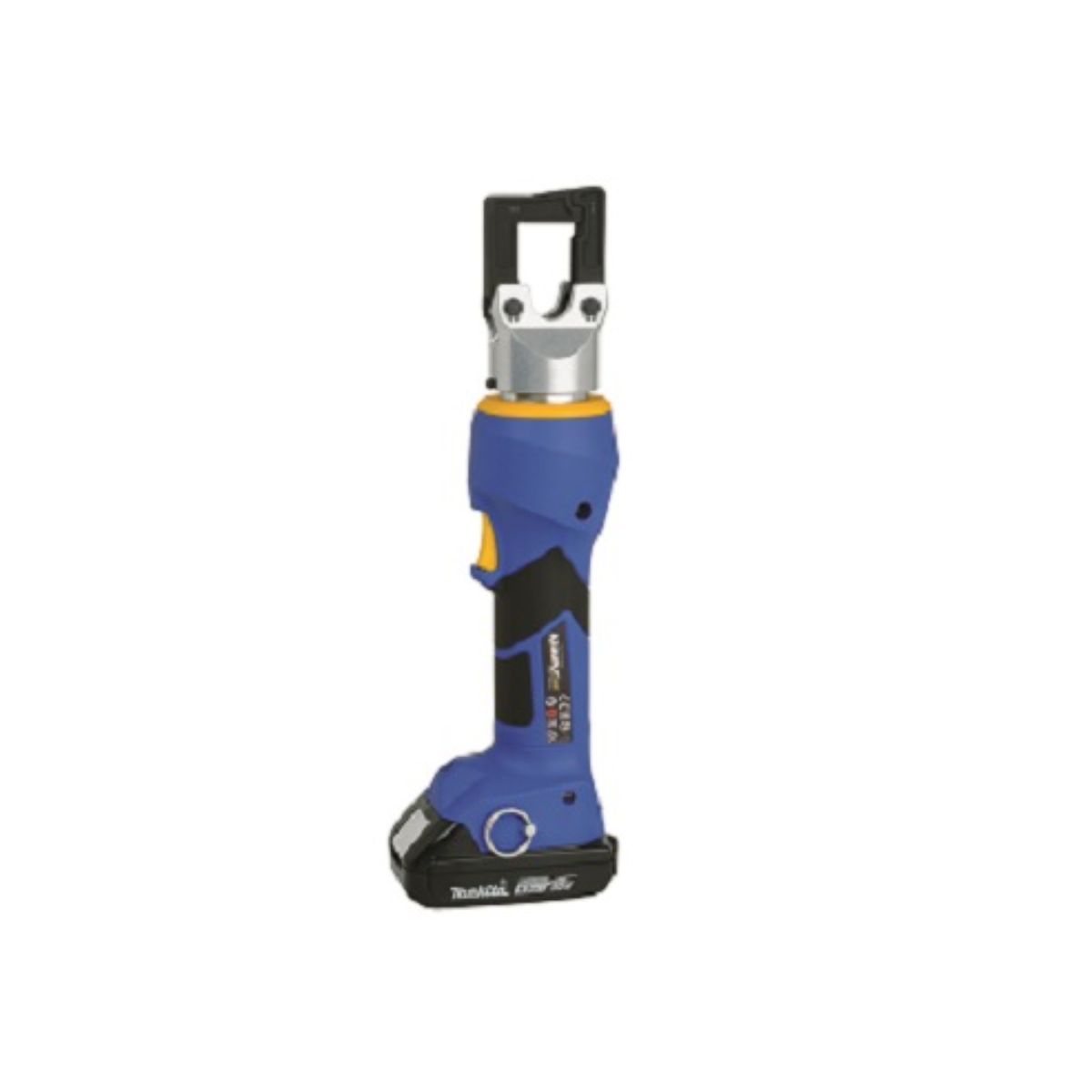

Klauke EK35/4 Battery Crimping tool
SKU: EK35
The Klauke EK35/4 battery crimping tool is supplied with HEX die set for standard copper crimping from 6-150 mm².
Create an account
Login or create an account to gain access to product prices and document library.
Create hire accountor sign in here
- All data can be easily read via Bluetooth Closed head
- Flip top style
- Rotatable Quality assurance via visual and audible signals in case of error
- Simple and safe: One-button operating concept for controlling all tool functions
- Effortless working thanks to low weight
- Comfortable and secure one-hand operation thanks to 2-component plastic housing with soft lining LED for work area illumination
- Always ready-to-use thanks to battery charge and service display
Specifications:
Bosch Battery System
- Crimping force: 35 kN
- Stroke: 9 mm
- Crimping range: 6–150 mm²
- Crimping cycle: 3–4 seconds, depending on crimp cross-section
- Battery voltage: 18V
- Battery capacity: 2.0 Ah Li-Ion
- Battery charging time: 15 minutes
- Weight including battery: 2.4 kg
- Ambient temperature: -10°C to +40°C
Makita Battery System
- Crimping force: 35 kN
- Stroke: 9 mm
- Crimping range: 6–150 mm²
- Crimping cycle: 3–4 seconds, depending on crimping cross-section
- Number of crimps: Approx. 140 at 120 mm² Cu
- Battery voltage: 18V
- Battery capacity: 1.5 Ah Li-Ion
- Battery charging time: 15 minutes
- Weight including battery: 2.4 kg
- Ambient temperature: -10°C to +40°C
