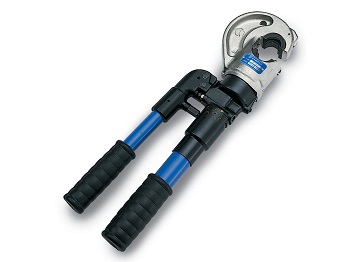

HT131 Hydraulic Crimping tool
SKU: HT131
The HT131-C hydraulic crimping tool is designed for crimping electrical connectors on conductors up to 400 mm². Its durable, compact design features a 180° rotating open head, two-speed hydraulic system and ergonomic handle, with pressure relief and rapid pressure release for added safety.
Create an account
Login or create an account to gain access to product prices and document library.
Create hire accountor sign in here
Features:
- Self contained, robust and sturdy, will accept all semicircular slotted dies, common to most 130 kN tools.
- The tool features a double speed action: a fast advancing speed for rapid approach of the dies to the connector and a slower more powerful speed for crimping.
- For ease of operation and comfort of the operator the tool head can be fully rotated through 180 degrees.
- The built-in safety valve will by-pass the oil supply when the maximum pressure is reached, and the pressure release system can easily be operated at any stage of compression.
Specifications:
- Application range: Suitable for compression of electrical connectors on conductors up to 400 mm² (800 MCM)
- Crimping force: 130 kN (14.6 sh ton)
- Rated operating pressure: 700 bar (10,000 psi)
- Dimensions with handles closed: 473 × 144 mm (18.6 × 5.7 in.)
- Dimensions with handles open: 473 × 344 mm (18.6 × 13.5 in.)
- Weight without dies: 5.5 kg (12.1 lbs)
