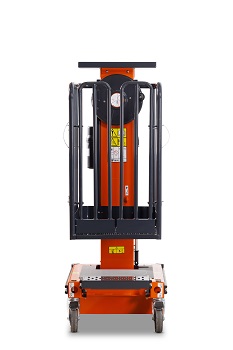

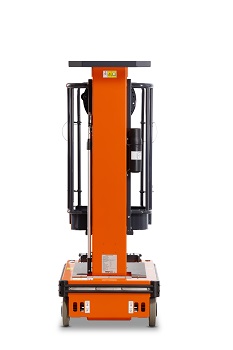

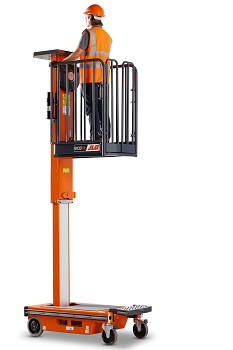

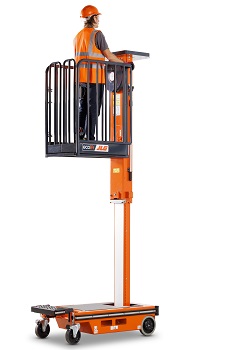

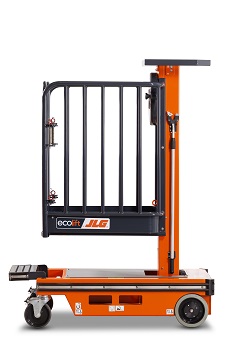

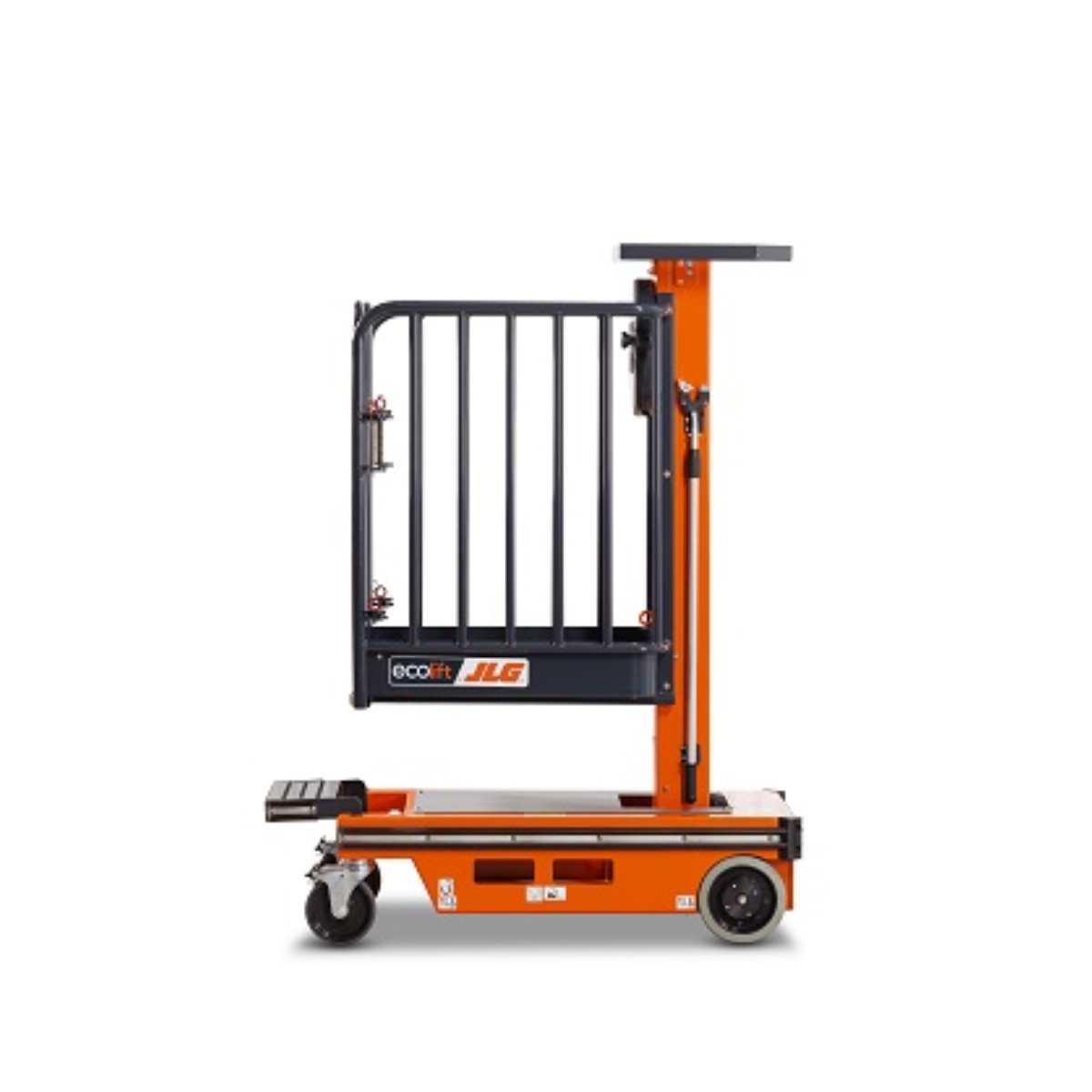

ECO LIFT 2.2M
SKU: ECO
JLG’s Ecolift is hydraulic oil and battery free and with no need to charge has no energy consumption. It is the big brother to the Pecolift and is an eco-friendly solution to Powered Access needs.
Create an account
Login or create an account to gain access to product prices and document library.
Create hire accountor sign in here
Features:
- Intuitive to operate – turn handle to elevate.
- Patented* lift mechanism, no power required.
- Lightweight, easy to manoeuvre.
- Small footprint (1.28m x 700mm)
- Unlimited lift cycles, can be used 24/7
- Robust design for years of trouble-free service
- Minimal operational costs, virtually maintenance free
Specifications:
| – Maximum working height: | 4.20m |
| – Maximum platform height: | 2.20m |
| – Basket dimensions: | 850mm (L)x 644mm (W) |
| – Working footprint: | 1.28m x 0.7m |
| –Safe working load: | 150kg (1 person + tools) |
| –Maximum manual force: | 200N |
| –Maximum gradient for operation: | 0 degrees |
| –Maximum wind force: | Internal use only / 0 (zero) mph |
| –Maximum wheel force: | 234kg |
| –Maximum caster point load: | 234kg (229 KN) |
| –Maximum Sound pressure level: | Less than 70Dba |
Closed Dimensions:
| –Length: | 1.28m |
| –Width: | 0.7m |
| –Height: | 1.94m |
| – Weight: | 305kg |
