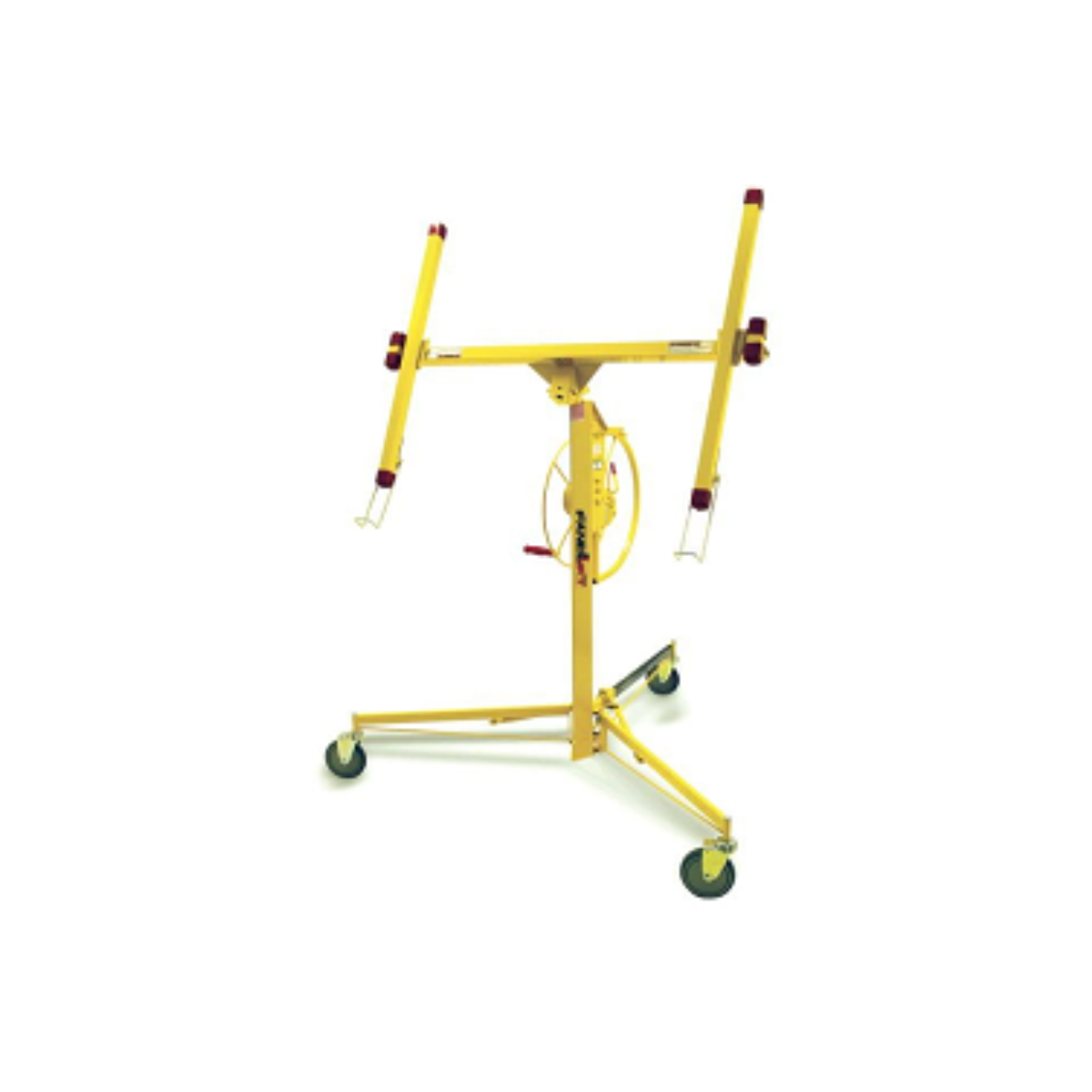

DRYWALL PANEL LIFT
SKU: DWP
Fast action, single stage winch with silent cam-lock brake easily lifts and lowers wallboard. Cradle tilts laterally 65 degrees for easy loading and for installation on walls and sloped ceilings. It also tilts longitudinally 10 degrees.
Create an account
Login or create an account to gain access to product prices and document library.
Create hire accountor sign in here
Additional Information
Features:
- Fast action, single stage winch with silent cam-lock brake easily lifts and lowers wallboard.
- Cradle tilts laterally 65 degrees for easy loading and for installation on walls and sloped ceilings.
- Also tilts longitudinally 10 degrees.
Specifications:
- Max. Standard Reach: 11′
- Reach with Extension 154: 12′ 6″
- Reach with Extension 186: 15′
- Standard Loading Height: 37″
- Loading Height with Loader 195: 2-4″
- Load Capacity: 150 lbs.
- Sheet Size & Capacity: single drywall sheets up to 4′ x 16′
- Power Source: Manual
- Lift Mechanism: Single Stage Cable
- Storage & Transport Cart Available: Model 110 or 117
,
