DIESEL MOSA DC 300AMP
SKU: DW300

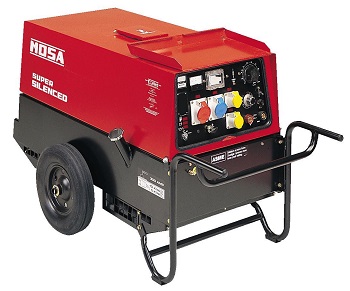

The Mosa TS 300 KSX/EL is an industrial quality, high specification, engine driven diesel welder generator for site welding work.
Create an account
Login or create an account to gain access to product prices and document library.
Create hire accountor sign in here
Additional Information
Features:
- 300 amp DC welding output
- Powerful and efficient Kohler KD477-2 diesel engine
- Stepless electronic welding control
- Arc control for cellulose electrodes
- AC generator output - multi-voltage 10kVA
- Electric start
- Auto idle control
- Super silenced canopy
- EEC noise compliant
Specification:
- Current Range DC (Continuous)20 - 300 A
- Open Circuit Voltage70 V
- Duty Cycle @ 60%300 A
- Duty Cycle @ 100%250 A
- Electrode Diameter2 - 6 mm
- Engine TypeKohler KD477-2 Diesel Engine
- Engine Output14 kW (19 HP)
- Engine Speed3000 rpm
- Displacement/Cylinders954 cm3/2
- Fuel Consumption2.5 litres/Hour
- Tank Capacity 23 Litres
- Running Time @ 60% load9 Hours
- AC Generation Three Phase10 kVA 400V
- AC Generation Single Phase5 kVA 230V
- AC Generation C.T.E.2 x 2.5 kVA 110V
- ProtectionIP 23
- Dimensions (mm)1320 x 780 x 780
- Weight Kg370
- Nose Level99 LWA 74dB(A)
,
