Cable Pulling/Laying Winch
SKU: CLW25

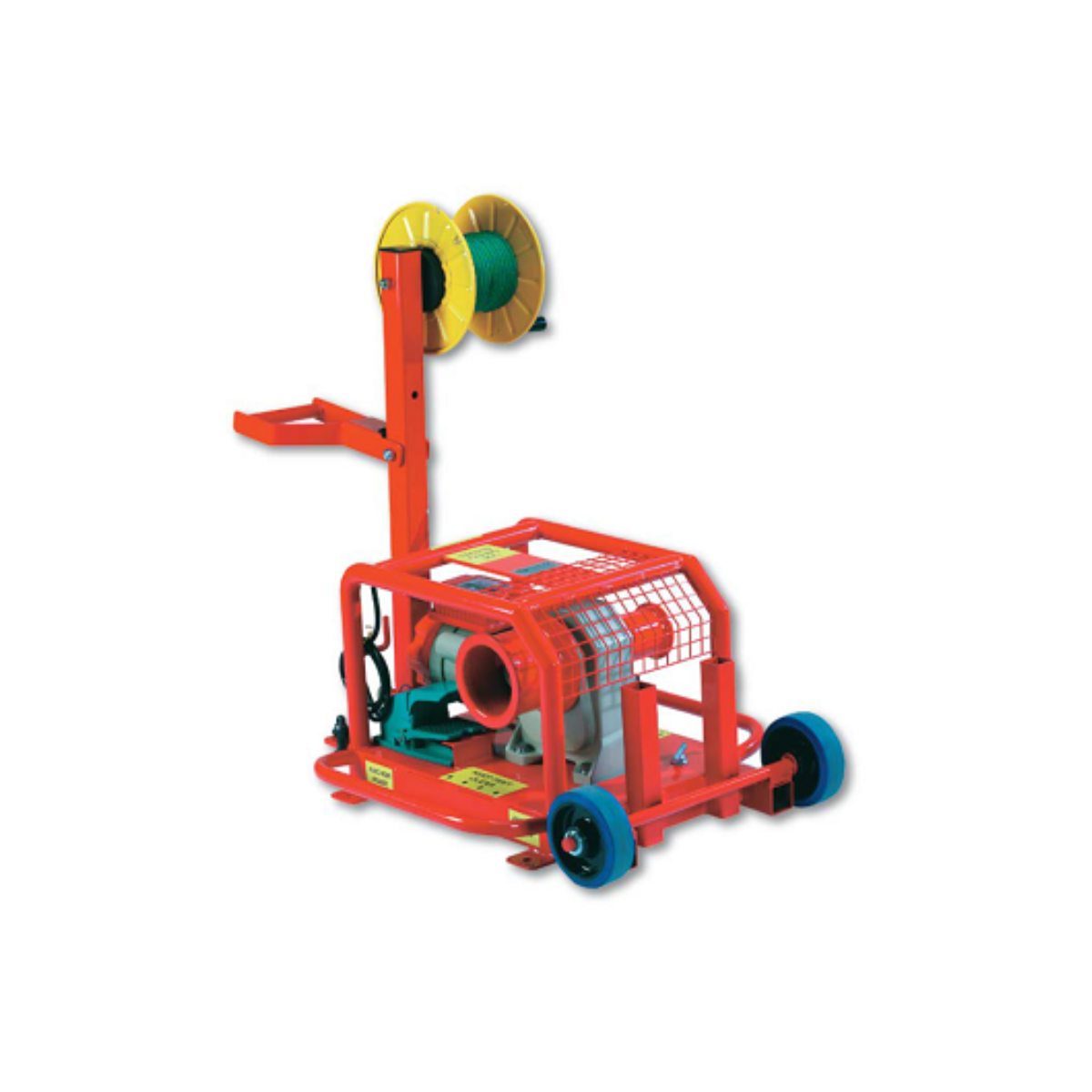

This 110V Electric Winch takes the strain and makes the job easier when it comes to reeling in cables.
Create an account
Login or create an account to gain access to product prices and document library.
Create hire accountor sign in here
Features:
Dual capstan heads – Will haul up to 1500kg and 2500kg.
Two speed options – According to the capstan head selected.
Easily transportable on site – Using either the removeable wheels or carry handles.
All round tubular frame – Strong and makes it simple to hold by attaching restraining straps to the shackles provided or using ground stakes through the integral side lugs.
Foot controlled for efficient control – Leaves the hands free for cable spooling.
Cable storage reel.
Case hardened gear train for maximum efficiency.
High efficiency heavy-duty ball bearings on all running surfaces.
Overload protection ensures automatic shutdown.
Electromagnetic spring-applied fail-safe brake.
Rugged high power induction motor to ensure reliability.
Specifications:
Weight 80 kg
Dimensions 65 × 55 × 44 cm
Voltage 110 V
Motor outputs 0.6kW
Pulling Capacity 1500 kg, 2500 kg
Rope speed Small capstan: 2.5m/min
Rope speed Large capstan: 4m/min
