ALF 150 DUCT TESTER
The ALF 150 duct leakage tester is a light-weight and totally self-contained primary device machine. It can generate up to 150l/s of airflow and test up to 2500Pa static pressure.
| Weekly hire rate | £262.50 ex. VAT |
|---|---|
| Availability | In Stock |
Create an account
Login or create an account to gain access to product prices and document library.
Create hire accountor sign in here

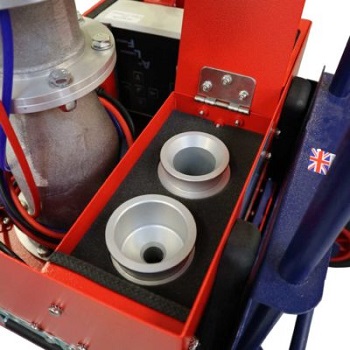

It is capable of developing static pressures from -2500Pa to +2500Pa, and flow rates of 1 to 150l/s. This provides approximately 140l/s of air flow for Class A leakage tests and up to 70l/s for Class C/D leakage tests. The ALF 150 uses conical inlet nozzles, which means the unit is a primary device.
A single all in one instrument means that this duct leakage tester is not only simple to use but also removes the complexity that might be associated with operating a duct work leakage tester and other forms of testing equipment. The ALF 150 is easily transportable.
Specifications:
| Standards | EN 1507 / 12237, DW/143, SMACNA | |
| Volume Flow Measurement | 1 to 150 l/s – over nozzle ranges | |
| Pressure Measurement Range | ±2500 Pa | |
| Typical Duty Points | 70 l/s at 2000 Pa, 140 l/s at 500 Pa | |
| Pressure Measurement Accuracy | ±1% of reading ±1 digit | |
| Leakage Flow Accuracy | ±2.5% of reading ±1 digit | |
| Resolution | 1 Pa | |
| Sensor Damping | 0.5s to 8s | |
| Power | 400W | |
| Voltage | 230Vac 50/60Hz (or 110Vac 50/60Hz available) | |
| Unit Size | 35W x 46D x 80H cm | |
| Unit Weight | 20kg | |
| Carry Case (c/w Accessories) Size | 45W x 45D x 55H cm | |
| Carry Case (c/w Accessories) Weight | 10.5kg | |
| Clip on Trolley Size | 38W x 20D x 94H cm | |
| Clip on Trolley Weight | 6.7kg | |
| Maximum recommended SD Card | 32 GB SDHC Class 1 |
